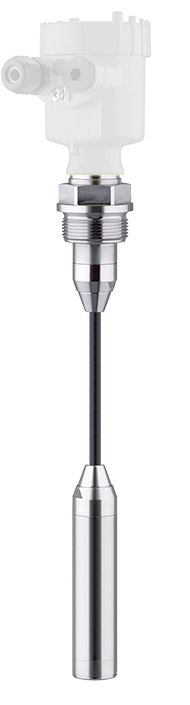

VEGABAR 86
悬挂测压变换器 带CERTEC®测量单元
带陶瓷测量元件
|
|
应用范围
您的获益
- 无损耗陶瓷测量单元维护保养便宜
- 设备可用性极高,抗超负荷和真空的陶瓷测量单元
- 自清理通过端面对齐方式
- 0 ... 25 bar [Bar - kPa - psi]
- -20 ... 100 °C [°C - °F]
- 0 ... 25 bar [Bar - kPa - psi]
- 0,1 %
- PVDF
- 316L
- FEP
- PE
- PUR
- ≥ G1½, ≥ 1½ NPT
- ≥ DN 40, ≥ 2"
- EPDM
- FKM
- FFKM
- 塑料
- 铝
- 不锈钢,精密铸件
- 不锈钢,经电解抛光
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- IP66/IP68 (25 bar)
- IP69K
- Profibus PA
- Foundation Fieldbus
- 4 … 20 mA
- Two-wire: 4 … 20 mA/HART
- Modbus
- Secondary electronics for electronic differential pressure
- -40 ... 80 °C
- ATEX / 欧洲
- FM/美国
- EAC (GOST) / 白俄罗斯
- EAC (GOST) / 哈萨克斯坦
- EAC (GOST) / 俄罗斯
- IEC / 全球
- NEPSI / 中国
- UKR Sepro / 乌克兰
- INMETRO / 巴西
- CCOE / 印度
- CSA / USA and Canada
- IA
- UKEX
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- FDA
- Drinking water
- EG1935/2004
- ABS
- BV
- CCS
- DNV
- LR
- NK
- RINA
- 水资源法
- VLAREM II
- SIL2
- Plicscom
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- 显示/操作模块 PLICSCOM
- VEGADIS 81
- VEGADIS 82
图纸发生器
按照您的专用配置生成 2D 和 3D 图纸。
现在配置产品目录
静压式
产品信息
VEGABAR 86, 87, VEGAWELL 52
产品数据表
VEGABAR 86
4 … 20 mA - 两线制
操作说明书
VEGABAR 86
4 … 20 mA - 两线制
图纸发生器
该产品的更多下载
可以在我们的下载中心找到该产品的所有文档和软件。
