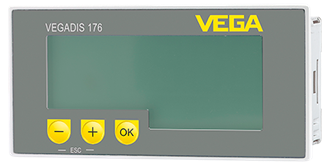

VEGADIS 176
External display
External display for 4 ... 20 mA/HART sensors, without external power supply for panel mounting
应用范围
External display and adjustment module for panel mounting without external energy
Application area
The VEGADIS 176 is an external display and adjustment module without additional external energy. It is used for separate measured value indication of all standardized 4 … 20 mA circuits.
Your benefit
- Universal use through five-digit, scalable 17 mm display with backlight
- Reliable function and various application possibilities thanks to a compact, robust housing with high protection rating in the front area
- The low voltage drop of < 1 V allows the use in most 4 … 20 mA circuits
Technical data
Display:|;digital
Voltage drop:|;< 1 V
Signal: |;4 … 20 mA
Mounting: |;panel mounting
您的获益
- 紧凑型的牢固壳体和高保护级别确保功能可靠,应用广泛
- Universal use through 5-digit, backlit, scalable 17 mm display
- The low voltage drop of <1 V allows use in most 4 ... 20 mA circuits
应用
技术参数
文件
配件
配置产品
技术参数
保护方式
IP20/IP65
环境温度
-10 ... 60 °C
输入
4 … 20 mA/HART
输出
4 … 20 mA
许可证
适用范围
ATEX / 欧洲
FM/美国
IEC / 全球
防爆
Intrinsic safety "i"
显示与操作
操作
现场调试
显示
Digital display
