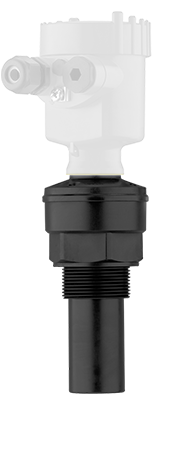

VEGASON 61
超声波传感器用于持续性物位测量
能测量最多 5 米深的液体和最多 2 m 深的固料
- 5 m [Meter - Foot]
- -40 ... 80 °C [°C - °F]
- -0.2 ... 2 bar [Bar - kPa - psi]
- ± 4 mm
- PVDF
- ≥ G1½, ≥ 1½ NPT
- 卡箍 ≥ 2", DN50 - DIN32676, ISO2852
- 卡箍 ≥ 3", DN65 - DIN32676, ISO2852
- 卡箍 ≥ 3½" , DN80 - DIN32676, ISO2852
- 卡箍 ≥ 4" , DN100 - DIN32676, ISO2852
- 螺纹管接头 ≥ 3", DN65 - DIN 11851
- 螺纹管接头 ≥ 3½", ≥ DN80 - DIN 11851
- 螺纹管接头 ≥ 4", ≥ DN100 - DIN 11851
- EPDM
- FKM
- 塑料
- 铝
- 不锈钢(精密铸件)
- 不锈钢(电解抛光)
- IP66/IP68 (0.2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- Profibus PA
- Foundation Fieldbus
- 两线制:4 … 20 mA/HART
- 四线制:4 … 20 mA/HART
- -40 ... 80 °C
- ATEX / 欧洲
- CSA / 加拿大
- FM / 美国
- EAC (GOST) / 白俄罗斯
- EAC (GOST) / 哈萨克斯坦
- EAC (GOST) / 俄罗斯
- IEC / 全球
- NEPSI / 中国
- UKR Sepro / 乌克兰
- INMETRO / 巴西
- 本质安全型“i”
- ABS
- CCS
- DNV
- GL
- LR
- RINA
- SIL2
- PLICSCOM
- PC,PACTware 和 DTM
- HART 手操器
- 软件(例如 AMS™,PDM)
- 显示/操作模块 PLICSCOM
- VEGADIS 81
- VEGADIS 82
图纸发生器
按照您的专用配置生成 2D 和 3D 图纸。
现在配置产品目录
