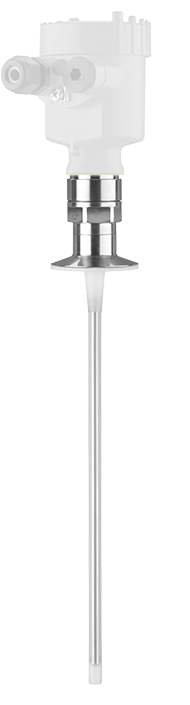

VEGAFLEX 83

TDR辐射测量传感器用于持续性液位和夹层测量

用于腐蚀性的介质或满足最高的卫生要求


应用范围

经 PFA 涂层的或抛光的传感器。即使在有蒸汽、有附着物、会发泡或有冷凝物的应用场合,该传感器也能提供准确可靠的测量值。
VEGAFLEX 83免维护测量侵蚀性液体或流态介质,满足最高卫生要求。 测量不受蒸汽,粘着,泡沫和冷凝等因素影响,测量结果精确可靠。 VEGAFLEX 83 为经济型匹配完美的测量方案。

您的获益

  • 无缝卫生设计确保清理简单可靠
  • 免维护工作明显提高设备的经济节约性
  • 导航操作能简易,省时并安全地完成启用

配置产品

配置产品

可以在我们的下载中心找到该产品的所有文档和软件。

显示所有下载
应用
技术参数
文件
配件
配置产品

导波物位-雷达传感器,用于无菌容器和卫生应用

对于在无菌容器或食品制药行业测量物位或界面,导波物位传感器VEGAFLEX 83是理想的选择。通过采用光滑的不锈钢电极,它是用于敏感介质的清洁的解决方案,满足最高的卫生要求。高品质的不锈钢电极也可以测量腐蚀性,危险性的液体。测量不受介质特性,如:密度、温度、泡沫或粘附的影响。
导波物位-雷达传感器VEGAFLEX 83是用于测量卫生型液体的特殊电极,比如用于:

  • 测量番茄酱搅拌机的物位
  • 测量牛奶储罐的物位
  • 测量清洁度高的容器的物位

其他应用

灌装机成品罐

灌装机成品罐

在灌装机的成品罐中测量液位

参考应用

碱性电解槽(AEL)

碱性电解槽(AEL)

碱性电解槽中液位及压力测量

参考应用

Stripping column for landfill leachate

Stripping column for landfill leachate

Level measurement in a stripping column

参考应用

溶剂反应釜

溶剂反应釜

在混合过程中测量物位、压力和限位

参考应用
技术参数
量程 - 距离
32 m [Meter - Foot]
过程温度
-40 ... 150 °C [°C - °F]
过程压力
-1 ... 16 bar [Bar - kPa - psi]
测量精度
± 2 mm
型式
Rod ø 10 mm, PFA-coated
Exchangeable rod ø 8 mm, polished
Exchangeable rod ø 8 mm, electropolished
Exchangeable rod ø 8 mm, electropolished, can be autoclaved
Cable ø 4 mm with gravity weight, PFA-coated
接液材料
PFA
316L
TFM-PTFE
法兰连接
≥ DN25, ≥ 1"
卫生型连接
Clamp ≥ 2", DN50 - DIN32676, ISO2852
Clamp ≥ 3", DN65 - DIN32676, ISO2852
管螺栓 ≥ 1½", ≥ DN40 - DIN 11851
管螺栓 ≥ 2", DN50 - DIN 11851
Varivent ≥ DN25
Hygienice flange connection ≥ DN50 DIN11864-2
Swagelok VCR screwing
Hygienic collar clamp ≥ DN33 - DIN 11864-3
Safety ingold
密封材料
EPDM
FKM
FEPM
外壳材料
塑料
不锈钢,精密铸件
不锈钢,经电解抛光
防护等级
IP66/IP68 (0,2 bar)
IP66/IP67
IP66/IP68 (1 bar)
输出
Profibus PA
Foundation Fieldbus
4 … 20 mA/HART - two-wire
Modbus
4 … 20 mA/HART - four-wire
环境温度
-40 ... 80 °C
许可证
适用范围
ATEX / 欧洲
CSA / 加拿大
FM/美国
EAC (GOST) / 白俄罗斯
EAC (GOST) / 哈萨克斯坦
EAC (GOST) / 俄罗斯
IEC / 全球
NEPSI / 中国
UKR Sepro / 乌克兰
INMETRO / 巴西
CCOE / 印度
UKEX
防爆
Intrinsic safety "i"
Flameproof enclosure "d"
Dust explosion protection through housing "t"
食品/医药
EHEDG
FDA
溢出保护
水资源法
VLAREM II
SIL认证
SIL2
显示与操作
操作
Plicscom
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)
显示
显示/操作模块 PLICSCOM
VEGADIS 81
VEGADIS 82
