VEGADIF 85
差压变送器,适用于各种介质
采用金属测量膜片
如何进行差压测量?
无论是哪个厂商的传统差压变送器,其测量原理都是一样的:两个压力值作用到同一台差压变送器上,测量元件通过机械方式得到差压,再转换为电信号,作为测量结果输出。
电子差压测量则有所不同:每套电子差压仪表都有一台主表和一台从表,两台表分别测量两处的压力大小。
- -40 ... 40 bar [Bar - kPa - psi]
- -40 ... 105 °C [°C - °F]
- -1 ... 400 bar [Bar - kPa - psi]
- 0.065 %
- 316L
- 钽
- C276 合金 (2.4819)
- 蒙乃尔合金
- ¼ - 18 NPT
- ≥ DN32, ≥ 1⅜"
- EPDM
- FKM
- 铜
- 塑料
- 铝
- 不锈钢(精密铸件)
- 不锈钢(电解抛光)
- IP66/IP68 (0.2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- 4 … 20 mA/HART
- Profibus PA
- Foundation Fieldbus
- 4 … 20 mA
- -40 ... 80 °C
- ATEX / 欧洲
- FM / 美国
- IEC / 全球
- UKR Sepro / 乌克兰
- INMETRO / 巴西
- CSA / 美国和加拿大
- UKEX
- 本质安全型“i”
- 隔爆外壳“d”
- 防粉尘点燃外壳“t”
- DNV
- GL
- WHG(德国水资源法)
- VLAREM II
- SIL2
- PLICSCOM
- PC,PACTware 和 DTM
- HART 手操器
- 软件(例如 AMS™,PDM)
- 蓝牙
- 显示/操作模块 PLICSCOM
- VEGADIS 81
- VEGADIS 82
图纸发生器
按照您的专用配置生成 2D 和 3D 图纸。
现在配置产品数据表
VEGADIF 85
4 … 20 mA/HART - 两线制
操作说明书
VEGADIF 85
4 … 20 mA - 两线制
图纸发生器
该产品的更多下载
可以在我们的下载中心找到该产品的所有文档和软件。
显示所有下载VEGAMET 141
![](/-/media/images/products/signal-conditioning/f-met141-xxxx-display-v01/vegamet141-xxxx-display-variant.gif?mh=140&hash=B7C9C9B4329A881D5CC04BD751FDF5BD)
1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
¥ 4,003.59
VEGAMET 142
![](/-/media/images/products/signal-conditioning/f-met142-xxxx-display-v01/vegamet142-xxxx-display-variant.gif?mh=140&hash=6BFAB652B5111A6794F7442833F681A0)
2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
¥ 5,188.96
VEGAMET 341
![](/-/media/images/products/signal-conditioning/f-met341-xxxx-display-v01/vegamet341-xxxx-display-web.gif?mh=140&hash=4C5A06BC9481719600D7633C43988FC2)
1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
¥ 4,353.89
VEGAMET 342
![](/-/media/images/products/signal-conditioning/f-met342-xxxx-display-v01/vegamet342-xxxx-display-web.gif?mh=140&hash=FED44B915AC465997E44AC46D969E3F5)
2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
¥ 5,539.26
VEGAMET 841
![](/-/media/images/products/signal-conditioning/f-met841-xxx1c-with-display/vegamet841-xxxx-display-web.gif?mh=140&hash=02AC56F4FDCCFF8E0B39FD843A275FDD)
1 x 4 ... 20 mA sensor input, 1 x 4 ... 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
¥ 4,713.23
VEGAMET 842
![](/-/media/images/products/signal-conditioning/f-met842-xxx1c-with-display/f-met842-xxx1c-with-display.gif?mh=140&hash=2497195F8F247D25BF7313B09303AB37)
2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
¥ 5,889.56
VEGAMET 861
![](/-/media/images/products/signal-conditioning/f-met861-xxx1c-with-display/f-met861-xxx1c-with-display.gif?mh=140&hash=FF343AE857941976F797AA6BE7C56287)
1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
¥ 6,598.07
VEGAMET 862
![](/-/media/images/products/signal-conditioning/f-met862-xxx1c-with-display/f-met862-xxx1c-with-display.gif?mh=140&hash=AE5EB08BC41D5A93E617E43568D36080)
2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
¥ 7,900.96
VEGAMET 624
![](/-/media/images/products/signal-conditioning/f-vegamet624-auswertgeraet-und-anzeigeinstrument-fuer-fuellstandsensoren.png)
测量值显示和简单的调节控制功能以及测量值远程应答,用于4 ... 20 mA/HART传感器
产品细节VEGAMET 625
![](/-/media/images/products/signal-conditioning/f-vegamet625-auswertgeraet-und-anzeigeinstrument-fuer-fuellstandsensoren.png)
测量值显示和简单的调节控制功能以及测量值远程应答,用于2个HART传感器
产品细节VEGAMET 391
![](/-/media/images/products/signal-conditioning/f-vegamet391-auswertgeraet-und-anzeigeinstrument-fuer-fuellstandsensoren.png)
Measured value indication, simple control functions, remote enquiry of measured data. optimized for water/sewage water industry
产品细节VEGATOR 141
![](/-/media/images/products/signal-conditioning/f-vegator141.png?mh=140&hash=8AA15B7969A3DBBD11B70C00489BA231)
VEGATOR 142
![](/-/media/images/products/signal-conditioning/f-vegator142.png?mh=140&hash=D9538BC8394F9F2EFAFCCBF59CA58D13)
VEGASCAN 693
![](/-/media/images/products/signal-conditioning/f-vegascan693-auswertgeraet-fuer-bis-zu-15-hart-sensoren.png)
测量值显示以及测量值远程应答,用于可达15个HART传感器
产品细节PLICSMOBILE T81
![externe-GSM-GPRS-Funkeinheit](/-/media/images/products/signal-conditioning/f-plicsmobilet81-externe-gsm-gprs-funkeinheit.png?rev=3c04fdcb14034d4497030f987966bc4a)
Measured data enquiry and remote parameter adjustment for a HART sensor
产品细节VEGATRENN 141
![Einkanaliger Speisetrenner für 4 … 20 m/HART-Sensoren](/-/media/images/products/signal-conditioning/f-vegatrenn141-1.png?rev=472d905236d14830ba545f54d8388189&mh=140&hash=A4749257E8F0E2AC83AFEE03BDBE4389)
VEGATRENN 142
![Zweikanaliger Speisetrenner für 4 … 20 m/HART-Sensoren](/-/media/images/products/signal-conditioning/f-vegatrenn142-1.png?rev=79479feaf5b84596870c13bac6ea1284&mh=140&hash=1162F16F2B64A0E5ACE1AAC24A996A97)
VEGATRENN 151
![Einkanaliger Trennübertrager in Zweileitertechnik für 4 … 20 mA-Sensoren](/-/media/images/products/signal-conditioning/f-vegatrenn151-1.png?rev=8d530f83c3534a5aaa7f8fd7b972dfb5&mh=140&hash=9217307BDB20EC1FFF52F8AECF33347D)
VEGATRENN 152
![Zweikanaliger Trennübertrager in Zweileitertechnik für 4 … 20 mA-Sensoren](/-/media/images/products/signal-conditioning/f-vegatrenn152-1.png?rev=8bf116850b214eabb78b0462d857d7a7&mh=140&hash=56FDC2F3D73DC4DD176847279D6E2A66)
排气阀
![No image available](/-/media/images/noimage-available.png?rev=51067cb3c8da4f9c92b334db22114231)
Vent valves allow venting of the measuring chambers of differential pressure transmitters.
产品细节椭圆法兰接口
![Oval flange adapter](/-/media/images/products/accessory/f-102138-ovalflanschadapter.png?rev=fa6775084d2b4b1d8de20b27700e90fa)
Oval flange adapters according to IEC 61518 enable the connection of pipelines with ½ NPT to differential pressure transmitters.
产品细节填球角 用于VEGADIF
![No image available](/-/media/images/noimage-available.png?rev=51067cb3c8da4f9c92b334db22114231)
Mounting angle for wall or tube mounting.

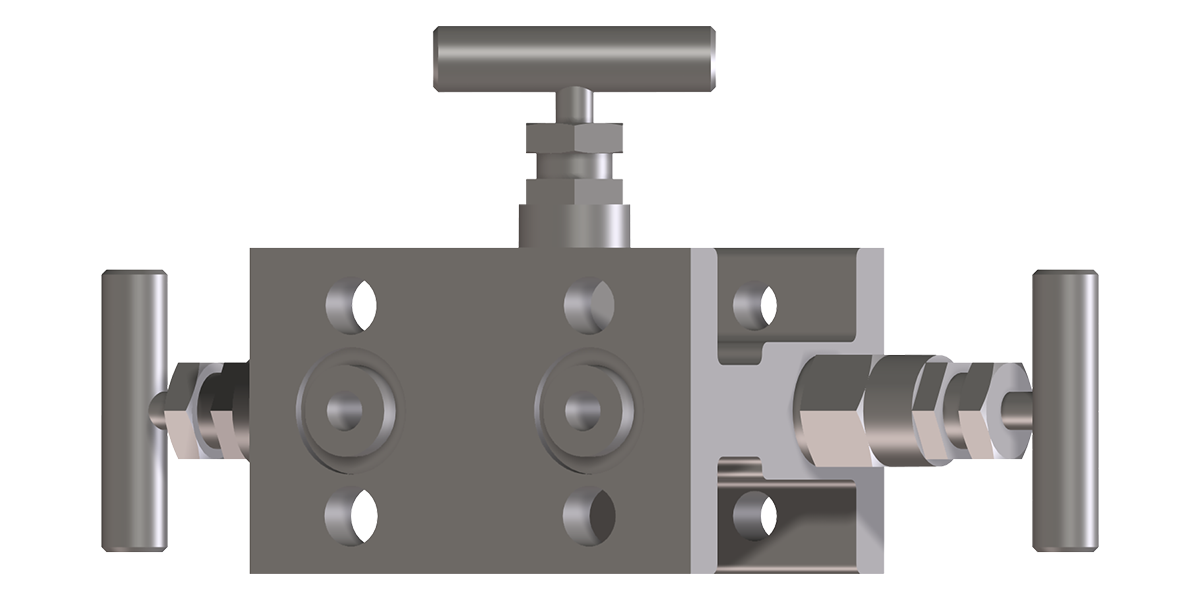

产品细节阀门组
![Valve block](/-/media/images/products/accessory/f-101119-ventilblock_3-fach.png?rev=5e70c468d0b242718f9bd76f146445e3)
Valves are used as shut-off device when connecting differential pressure transmitters to the process as well as for pressure equalisation of the measuring chambers during setup.
产品细节闭锁螺钉
![No image available](/-/media/images/noimage-available.png?rev=51067cb3c8da4f9c92b334db22114231)
Closing plugs are used to cover the open side of measuring chambers of pressure transmitters.
