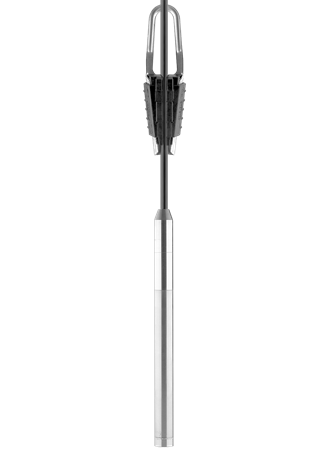

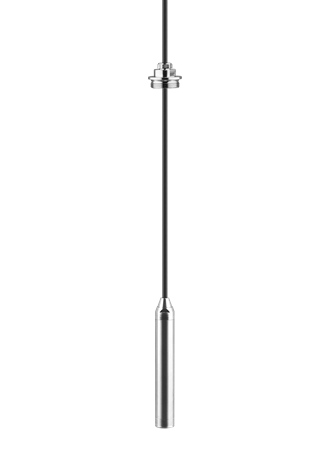

VEGAWELL 52

悬挂测压变换器 带CERTEC®测量单元

带陶瓷测量元件


应用范围

带有陶瓷测量元件的静压式绝对压力变送器用于在深井或船舶上的槽罐中测量水和废水的液位极为理想。 最大电缆长度 1000 m
VEGAWELL 52 适于液体的持续性液位测量。 典型应用包括水/废水,深井和造船业。

您的获益

  • High plant availability through integrated overvoltage protection
  • High reliability through maximum overload and vacuum resistance of the ceramic measuring cell
  • Versatile use through robust housing and cable design

配置产品

配置产品

可以在我们的下载中心找到该产品的所有文档和软件。

显示所有下载
应用
技术参数
文件
配件
配置产品

对于在水行业中测量水和废水或在船上测量储罐,带陶瓷测量元件的静压式绝压测量变送器VEGAWELL 52非常理想。
带陶瓷测量元件的绝对压力测量变送器为控制调节系统连续提供测量值,比如:

  • 溢流堰的流量测量或溢出测量
  • 用于控制地下水泵进行水位测量
  • 船上压载水舱的物位测量
  • 油罐上的物位测量

其他应用

岸滤系统

岸滤系统水位及压力测量

岸滤系统水位及压力测量

参考应用

Reservoir at the pumped storage power plant

Reservoir at the pumped storage power plant

Reservoir level measurement

参考应用

淡水舱及泳池水舱

淡水舱及泳池水舱液位测量

淡水舱及泳池水舱液位测量

参考应用

燃油舱

燃油舱液位及限位测量

燃油舱液位及限位测量

参考应用
技术参数
Measuring range - Pressure
0 ... 60 bar [Bar - kPa - psi]
Process temperature
-20 ... 80 °C [°C - °F]
Process pressure
- [Bar - kPa - psi]
Accuracy
0.1 %
Materials, wetted parts
PVDF
316L
Duplex (1.4462)
FEP
PE
1.4301
Titanium
Seal material
EPDM
FKM
FFKM
Protection rating
IP66/IP67
IP68
Output
4 … 20 mA
4 … 20 mA/HART - two-wire
Ambient temperature
-40 ... 80 °C
许可证
Scope
ATEX / Europe
CSA / Canada
FM / USA
EAC (GOST) / Belarus
EAC (GOST) / Kazakhstan
IEC / worldwide
UKR Sepro / Ukraine
INMETRO / Brazil
Explosion protection
Intrinsic safety "i"
Flameproof enclosure "d"
Dust explosion protection through housing "t"
Foodstuffs/Pharma
Drinking water
Ship approval
ABS
BV
CCS
DNV
GL
LR
RINA
Overfill protection
WHG
显示与操作
Adjustment
PC, PACTware and DTM
HART-Communicator
Software (e. g. AMS™, PDM)
Indication
VEGADIS 82

图纸发生器

按照您的专用配置生成 2D 和 3D 图纸。
