Diatomaceous earth filter

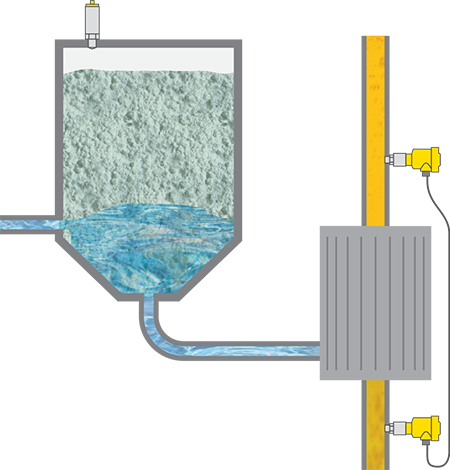

Differential pressure and limit level measurement in the diatomaceous earth filter

Process data

Measuring task:
Differential pressure and limit level measurement
Measuring point:
Measuring range up to:
+3 bar
Diatomaceous earth, green beer
Process temperature:
+1 … +10 °C
Process pressure:
0 … +3 bar
Special challenges:


After a large part of the yeast has already been filtered out in the separator, the brew leaves the green beer storage tank and is pumped into the diatomaceous earth filter for filtration. Here, the remaining yeast cells and other substances causing turbidity are removed with the help of diatomaceous earth, which clarifies the beer. The limit level is detected in the diatomaceous earth storage tank. If necessary, diatomaceous earth is added to the diatomaceous earth filter via water inflow. The degree of contamination of the diatomaceous earth filter is monitored by an electronic differential pressure measuring system.

Your benefit

Approved materials in compliance with FDA and EC 1935/2004
Cost effective
Monitoring of the diatomaceous earth filter ensures continuous operation
User friendly
Easy diagnosis thanks to Bluetooth communication
