Stripping column for landfill leachate
Level measurement in a stripping column
过程数据
测量任务:
Level measurement
测量点:
Reactor
测量范围至:
0 ... 1 m
介质:
Landfill leachate
过程温度:
+15 … +45 °C
过程压力:
0 … +0.5 bar
特殊挑战:
Aggressive leachate
应用范围

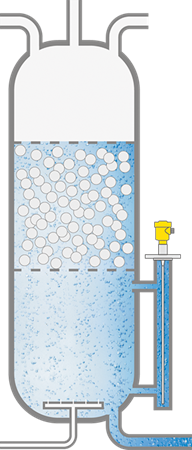

In the stripping column process, the nitrogen and carbon compounds are decomposed by various microorganisms. Special carrier materials are packed in the central part of the reactor, which improve the biochemical reaction processes. To ensure an optimal operating point inside the stripping column, an exact level measurement at the base of the column is required. Because the surface of the medium in the reactor is very turbulent due to air flowing in from below, the level measurement has to be carried out in a bypass tube.
您的获益
Reliable
Reliable measurement despite joints and deposits in the bypass tube
Cost effective
Precise measurement for efficient operation of the reactor
User friendly
Simple installation and setup
建议的产品
VEGAFLEX 83
Level measurement with guided radar inside the bypass tube of the stripping column
- Reliable and accurate measurement, even under difficult process conditions, including changing product properties
- Easy retrofit to existing installations
- Easy setup and commissioning without full and empty adjustment
量程 - 距离
32 m
过程温度
-40 ... 150 °C
过程压力
-1 ... 16 bar
