Dewatering column
Level measurement in the dewatering column
过程数据
测量任务:
Level measurement
测量点:
Dewatering column
测量范围至:
2 m
介质:
Waste oil
过程温度:
+20 … +105 °C
过程压力:
0 … +1 barbar
特殊挑战:
Turbulent surface due to pump action and heating, fluctuating medium properties, deposits and buildup
应用范围

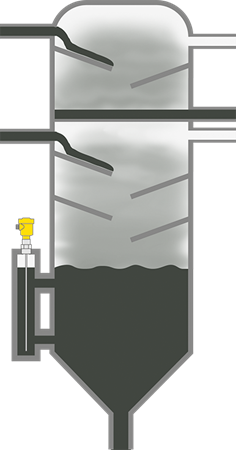

The waste oil is heated to a temperature of 105 °C in the lower section of the column. Here, the water evaporates and is pumped away after it condenses. After reaching the appropriate temperature, the oil is transported through pipes to the upper part of the column, where the remaining water vaporises. For optimal dewatering, a defined level is required in the column. As the oil surface is very turbulent due to the action of pumps and heating, making level measurement directly inside the column practically impossible. For that reason it is done in a bypass tube.
您的获益
Reliable
Reliable measurement enables dependable operation of the column
Cost effective
Optimal dewatering performance through defined level
User friendly
Measurement independent of medium properties
建议的产品
VEGAFLEX 81
Level measurement with guided wave radar in the dewatering column
- Dependable measurement in the bypass tube, completely independent of process conditions
- Easy setup and commissioning without full and empty adjustment
量程 - 距离
75 m
过程温度
-60 ... 200 °C
过程压力
-1 ... 40 bar
