Slurry tanks in biogas plants I

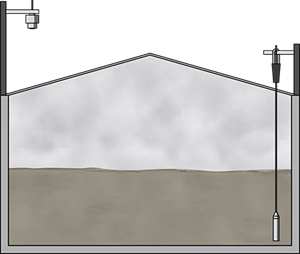

Non-contact level measurement with radar in a slurry tank of a biogas plant. Hydrostatic level measurement with submersible pressure transmitter with FEP suspension cable.
过程数据
测量任务:
Level measurement
测量点:
Fermenter
测量范围至:
0 … 5 m
介质:
Liquid manure, organic waste, corn silage
过程温度:
+35 … +38 °C
过程压力:
0 … 5 mbar
特殊挑战:
Aggressive medium, gas overlay, measurement through closed container ceiling
应用范围
Biogas plants convert a mixture of organic waste and renewable raw materials into valuable energy through fermentation using a largely CO2 neutral process. In addition to animal manure, large amounts of organic waste from agriculture and industry are also used for this purpose. Up to 50% corn silage or other renewable raw materials can also be mixed in as an additional energy source. Optimal consumption of the resources and maintenance-free operation require the use of highly reliable measurement technology. In all production steps – from the delivery of raw materials and waste to the removal of residues – the levels must be closely and accurately monitored.
建议的产品
VEGAPULS C 21
Non-contact level measurement with radar in the slurry tank of a biogas plant.
- Radar measurement is completely independent of ambient conditions
- Non-contact measurement allows maintenance-free operation
- Simple mounting reduces installation costs
Measuring range - Distance
15 m
Process temperature
-40 ... 80 °C
Process pressure
-1 ... 3 bar
VEGAWELL 52
Hydrostatic level measurement with submersible pressure transmitter with FEP suspension cable
- High durability ensures long service life
- Hydrostatic measurement independent of surface foam
- Simple setup and commissioning reduces costs
Measuring range - Pressure
0 ... 60 bar
Process temperature
-20 ... 80 °C
Process pressure
-
