Distillation column

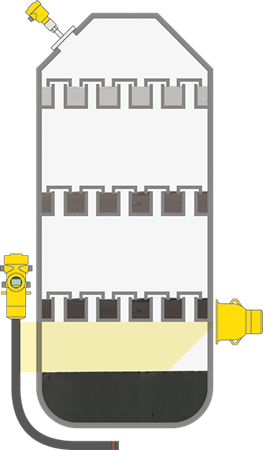

Level and pressure measurement in the distillation unit

Process data

Measuring task:
Level and pressure measurement
Measuring point:
Measuring range up to:
6 m
Process temperature:
+260 ... +400 °C
Process pressure:
+0.5 ... +4 bar
Special challenges:
Very high temperature, viscous process liquid


The heavy, highly viscous process material and extreme temperature are located in the bottom part of the distillation. For level control of residual feeds, a non-contact measurement is essential for reliability. Monitoring head space pressure at the upper end of refinery columns is important to ensure that the process is operating under ideal conditions.

Your benefit

Precise measurement results even in extreme environments
Cost effective
Easy mounting reduces installation and maintenance costs
User friendly
Simple calibration even during running process
