Clinker silo
Level measurement and point level detection in clinker silos
过程数据
测量任务:
Level measurement and point level detection
测量点:
Silo
测量范围至:
30 m
介质:
Clinker
过程温度:
-40 … +200 °C
过程压力:
0 … 0 bar
特殊挑战:
Dust, abrasion, high temperatures
应用范围

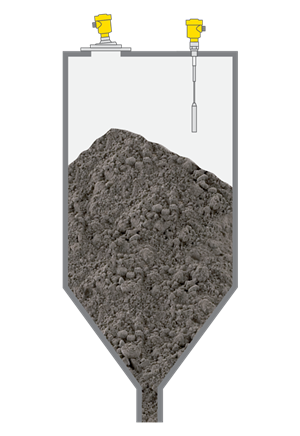

After the raw meal is burned, the emerging clinker of varying consistency is stored for further processing. The silos are filled and emptied through different openings. Continuous operation of the subsequent production processes is ensured by level measurement and point level detection.
您的获益
Reliable
Reliable measurement despite high temperatures
Cost effective
Optimal stocks enable continuous production
User friendly
Maintenance-free operation
建议的产品
VEGAPULS 6X
Level measurement with radar in clinker silos
- Exact measurement right to the bottom of the discharge funnel thanks to small beam angle
- High measurement certainty, unaffected by dust and temperature changes
- Maintenance-free through non-contact measurement
Measuring range - Distance
120 m
Process temperature
-196 ... 450 °C
Process pressure
-1 ... 160 bar
VEGACAP 65
Capacitive point level detection in clinker silos
- Robust construction ensures a long service life
- Reliable measurement, unaffected by buildup
- Cut to length cable probes allow high flexibility
Measuring range - Distance
-
Process temperature
-50 ... 200 °C
Process pressure
-1 ... 64 bar
