Conveyor belt transfer station
Level measurement and point level detection at the belt transfer point
|

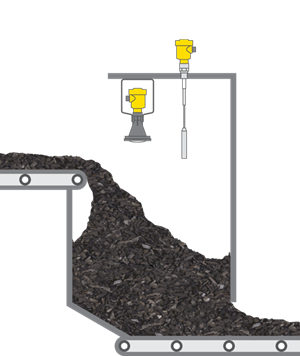

Radar, Capacitive

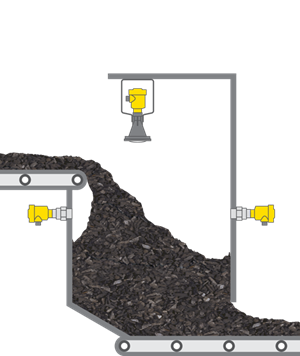

Radar, Microwave barrier
|
过程数据
测量任务:
Level measurement and point level detection
测量点:
Silo
测量范围至:
5 m
介质:
Stones, gravel and sand
过程温度:
-40 … +50 °C
过程压力:
0 … 0 bar
特殊挑战:
Extremely noisy and dusty environment, abrasion
应用范围
The transport of coarse and fine bulk solids within a stone processing facility takes place in most cases via conveyor belts. To achieve an even throughput and compensate for volume fluctuations during transport, belt transfer points are integrated in the conveyor line. The incoming bulk material is briefly stored in a buffer silo to prevent belt overfilling. This is the point where the level and the point level must be monitored.
您的获益
Reliable
Reliable monitoring of silo filling
Cost effective
Optimal utilization of conveyor belt capacity
User friendly
Maintenance-free operation
建议的产品
Radar, Capacitive
Radar, Microwave barrier
VEGAPULS 6X
Non-contact level measurement with radar at the belt transfer station
- Highly reliable even in dusty environments
- Maintenance-free non-contact measurement
- Maximum operational reliability due to noise insensitivity
量程 - 距离
120 m
过程温度
-196 ... 450 °C
过程压力
-1 ... 160 bar
VEGACAP 65
Overfill protection with capacitive point level detection at the belt transfer station
- Reliable measuring results, unaffected by buildup
- Dependable switching point ensured by large gravity weight
- Long service life thanks to robust, cut to length cable probe
量程 - 距离
-
过程温度
-50 ... 200 °C
过程压力
-1 ... 64 bar
VEGAPULS 69
Non-contact level measurement with radar at the belt transfer station
- Highly reliable even in dusty environments
- Maintenance-free non-contact measurement
- Maximum operational reliability due to noise insensitivity
量程 - 距离
120 m
过程温度
-40 ... 200 °C
过程压力
-1 ... 20 bar
VEGAMIP 61
Microwave barrier for level detection at the belt transfer point
- High measurement certainty even with soiling and deposits
- Long service life ensured by robust sensor
- Maintenance-free operation with non-contact measuring principle
量程 - 距离
100 m
过程温度
-40 ... 80 °C
过程压力
-1 ... 4 bar
