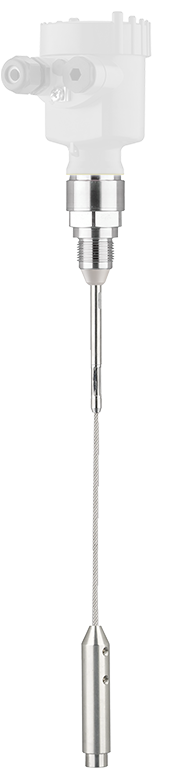

VEGAFLEX 81
TDR辐射测量传感器用于持续性液位和夹层测量
用于各种类型的液体的通用型 TDR 传感器
- 75 m [Meter - Foot]
- -60 ... 200 °C [°C - °F]
- -1 ... 40 bar [Bar - kPa - psi]
- ± 2 mm
- Basic version for exchangeable cable ø 2; ø 4 mm
- Basic version for exchangeable rod ø 8 mm
- Basic version for exchangeable rod ø 12 mm
- Coax version ø 21.3 mm for ammonia application
- Coax version ø 21.3 mm with single hole
- Coax version ø 21.3 mm with multiple hole
- Coax version ø 42.2 mm with multiple hole
- Exchangeable rod ø 8 mm
- Exchangeable rod ø 12 mm
- Exchangeable cable ø 2 mm with gravity weight
- Exchangeable cable ø 4 mm with gravity weight
- Exchangeable cable ø 2 mm with centering weight
- Exchangeable cable ø 4 mm with centering weight
- Exchangeable cable ø 4 mm without weight
- exchangeable, PFA-coated cable ø4 mm with non-coated centering weight
- PFA
- 316L
- 镍基热强合金 C22
- Alloy 400 (2.4360)
- Alloy C276 (2.4819)
- 不锈钢 Duplex (1.44562)
- 304L
- ≥ G¾, ≥ ¾ NPT
- ≥ DN25, ≥ 1"
- EPDM
- FKM
- FFKM
- Silicone FEP coated
- 硼硅玻璃
- 塑料
- 铝
- 不锈钢,精密铸件
- 不锈钢,经电解抛光
- IP66/IP68 (0,2 bar)
- IP66/IP67
- IP66/IP68 (1 bar)
- Profibus PA
- Foundation Fieldbus
- Two-wire: 4 … 20 mA/HART
- Modbus
- Four-wire: 4 … 20 mA/HART
- -40 ... 80 °C
- ATEX / 欧洲
- CSA / 加拿大
- FM/美国
- EAC (GOST) / 白俄罗斯
- EAC (GOST) / 哈萨克斯坦
- EAC (GOST) / 俄罗斯
- IEC / 全球
- NEPSI / 中国
- UKR Sepro / 乌克兰
- INMETRO / 巴西
- CCOE / 印度
- KTL Korea
- UKEX
- Intrinsic safety "i"
- Flameproof enclosure "d"
- Dust explosion protection through housing "t"
- FDA
- ABS
- BV
- CCS
- DNV
- LR
- NK
- RINA
- 水资源法
- VLAREM II
- SIL2
- Plicscom
- PC, PACTware and DTM
- HART-Communicator
- Software (e. g. AMS™, PDM)
- 显示/操作模块 PLICSCOM
- VEGADIS 81
- VEGADIS 82
图纸发生器
按照您的专用配置生成 2D 和 3D 图纸。
现在配置产品目录
导波雷达
产品信息
VEGAFLEX 81, 83, 86
产品数据表
VEGAFLEX 81
4 … 20 mA/HART - 两线制
操作说明书
VEGAFLEX 81
4 … 20 mA/HART - 两线制
图纸发生器
该产品的更多下载
可以在我们的下载中心找到该产品的所有文档和软件。
显示所有下载Bluetooth USB adapter
Wireless adjustment of sensors and instruments via Bluetooth
产品细节VEGADIS 81
Remote measurement value indication and adjustment of plics® sensors
产品细节VEGADIS 82
External measured value display and adjustment for 4 ... 20 mA/HART sensors
产品细节VEGADIS 176
Abgesetzte Anzeige zum Einsatz in 4 … 20 mA-Stromschleife
产品细节Magnetic pen for display/adjustment module PLICSCOM
Magnetic pen for on-site adjustment
产品细节VEGAMET 141
1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
产品细节VEGAMET 142
2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
产品细节VEGAMET 341
1 x 4 … 20 mA sensor input, 1 x 4 … 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
产品细节VEGAMET 342
2 x 4 … 20 mA sensor inputs, 2 x 4 … 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), Ex approval, separator, ship approval, on-site display, turn/push button and Smartphone operation
产品细节VEGAMET 841
1 x 4 ... 20 mA sensor input, 1 x 4 ... 20 mA current output, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
产品细节VEGAMET 842
2 x 4 ... 20 mA sensor inputs, 2 x 4 ... 20 mA current outputs, 3 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
产品细节VEGAMET 861
1 x 4 ... 20 mA/HART sensor input, 2 x digital inputs, 1 x 4 ... 20 mA current output, 4 x operating relay, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
产品细节VEGAMET 862
2 x 4 ... 20 mA/HART sensor inputs, 4 x digital inputs, 3 x 4 ... 20 mA current outputs, 6 x operating relays, 1 x fail safe relay (instead of operating relay), on-site display, 4-button and smartphone operation
产品细节VEGAMET 624
测量值显示和简单的调节控制功能以及测量值远程应答,用于4 ... 20 mA/HART传感器
产品细节VEGAMET 625
测量值显示和简单的调节控制功能以及测量值远程应答,用于2个HART传感器
产品细节VEGAMET 391
Measured value indication, simple control functions, remote enquiry of measured data. optimized for water/sewage water industry
产品细节VEGATOR 141
Transmission of 4 ... 20 mA signals for level signalling
产品细节VEGATOR 142
Transmission of 4 ... 20 mA signals for level signalling
产品细节VEGASCAN 693
测量值显示以及测量值远程应答,用于可达15个HART传感器
产品细节PLICSMOBILE T81
Measured data enquiry and remote parameter adjustment for a HART sensor
产品细节VEGATRENN 141
Single channel separator for 4 … 20 m/HART sensors
产品细节VEGATRENN 142
Double channel separator for 4 … 20 m/HART sensors
产品细节VEGATRENN 151
Single channel separator in two-wire technology for 4 … 20 mA sensors
产品细节VEGATRENN 152
Double channel separator in two-wire technology for 4 … 20 mA sensors
产品细节Overvoltage protection B 81-35
Pluggable overvoltage protection for supply and signal cables
产品细节B 63-32
Overvoltage protection for Profibus PA and Foundation Fieldbus circuits
产品细节B 63-48
Overvoltage protection for two-wire circuits
产品细节过电压防护 B 62-30 W
Overvoltage protection for Profibus PA and Foundation Fieldbus circuits
产品细节过电压防护 B 62-36 G
Overvoltage protection for two-wire circuits
产品细节G1½- 螺纹接口用于防腐接口
VEGAFLEX 系列60 缆和棒元件
FLEX 80配件/探头延长
FLEX80附件 / 星形支撑件
Spacers or centering weights fix the measuring probe in the middle of the tube.
产品细节VEGAFLEX Serie 80 Zentrier-/Straffgewichte
FLEX80 Abspannvorrichtung Seilversion für FLEX81, FLEX86
PLICSMOBILE 系列的天线延长件
VEGADIS adapter
For connection of an external display and adjustment unit or a Secondary sensor.
